The external guide units from Almotion are:

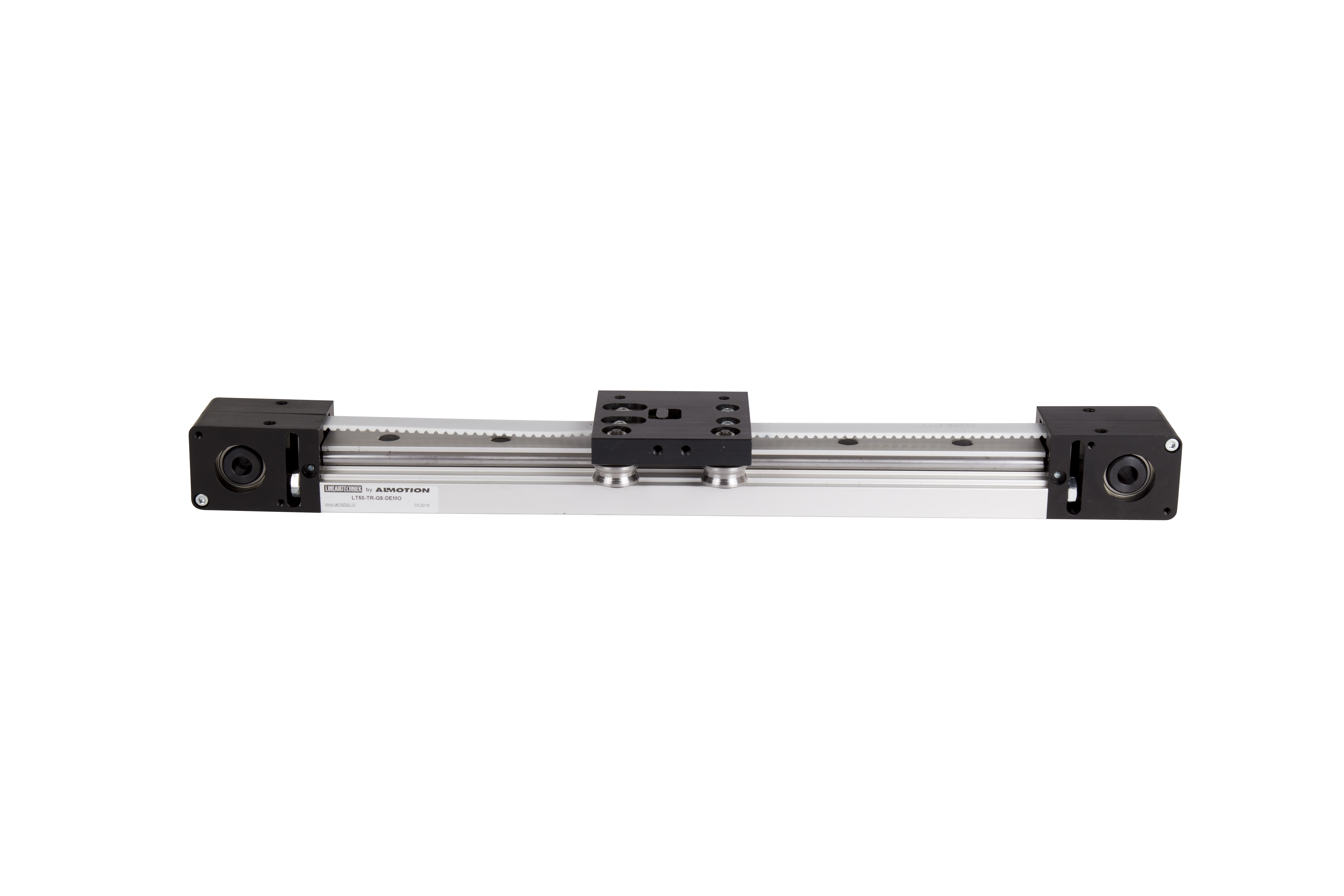

LT50 from Lineairtechniek:

  • Compact design, the width of the profile 50 mm
  • Guide system of hardened wheels on hardened shafts or rail guide, size -15-
  • Double carriage design for high load
  • G8 guide wheel systemis very resistant to pollution
  • Recirculation ball rail guide for heavy loads
  • Tooth belt 16 AT5
  • Customization
  • Available in food version

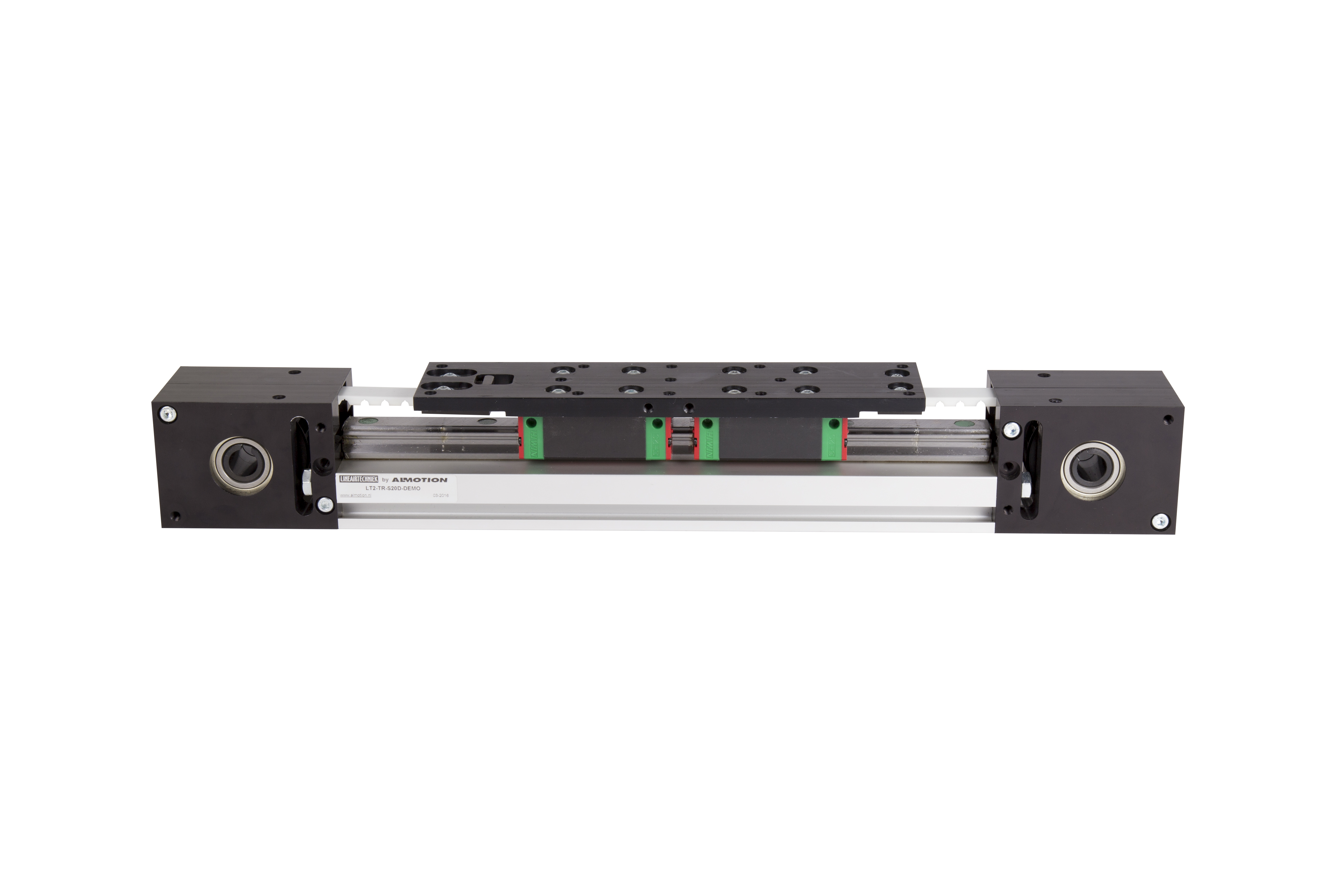

LT2 from Lineairtechniek:

  • Compact design, the width of the profile is 60 mm
  • Guide system of hardened wheels on hardened shafts or reciculating rail guide, size -20-
  • Double carriage design for high load
  • THL*: 32 kg
  • Tooth belt AT10 16 mm wide
  • C8 guide wheel system is very resistant to pollution
  • Customization possible
  • Recirculating ball rail guide for heavy loads

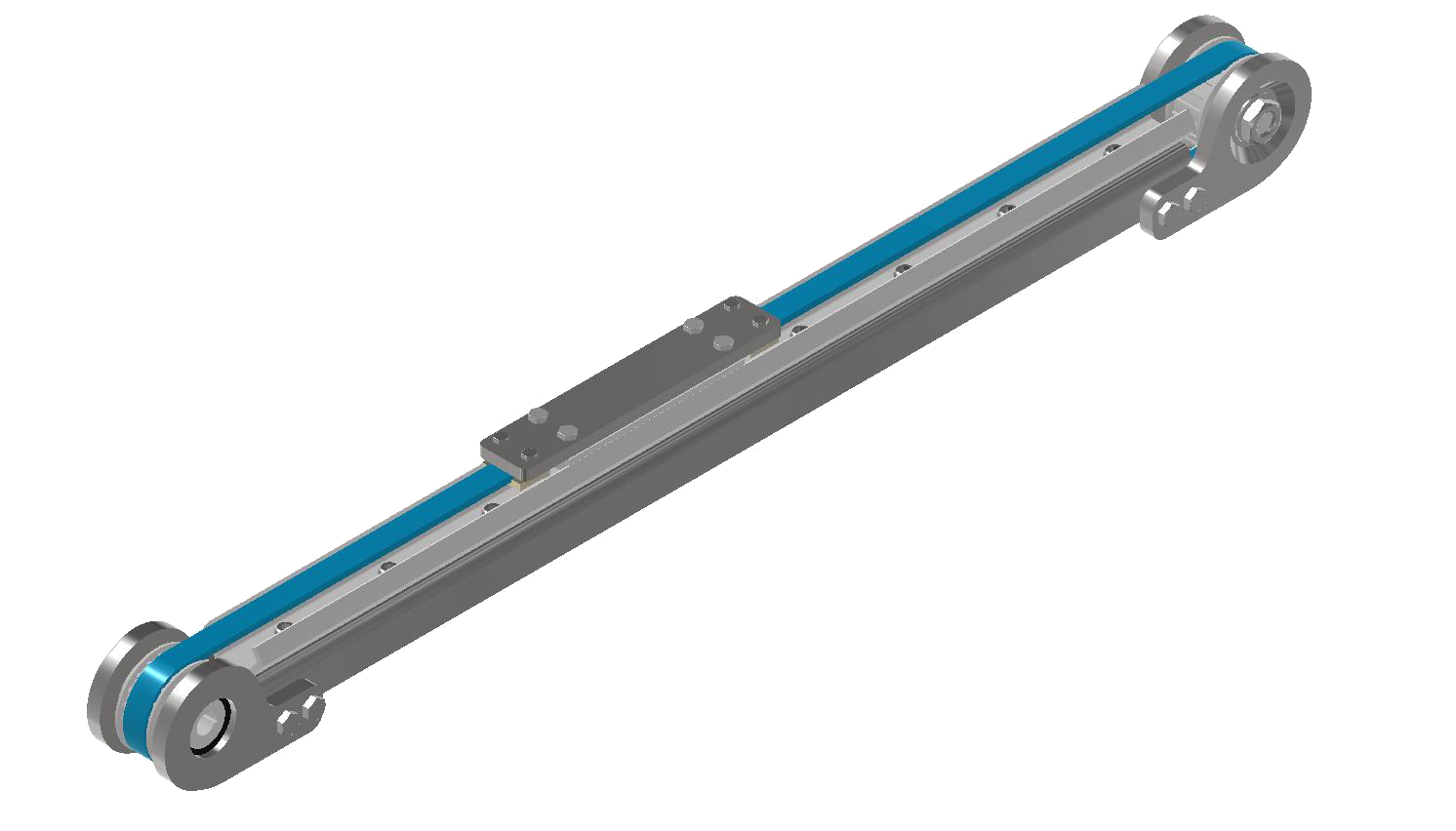

LTZ50 van Lineairtechniek:

  • Compact omega lineair unit, compact design, the width of the profile is 50 mm
  • Raile guide system for heavy loads, size -15-
  • Double carriage design for high load
  • Suitable as z-asix in a configuration
  • Tooth belt 16 AT5
  • Customization possible
  • THL*: 9 kg


* THL= Theoretical Handling Load
   The weight depends on multiple factors  (for example speed and acceleration).
   If you demand to know the maximum weight for your application, do not hesitate to
contact us.
