Technical data of Lineair Unit LT50 from Lineairtechniek

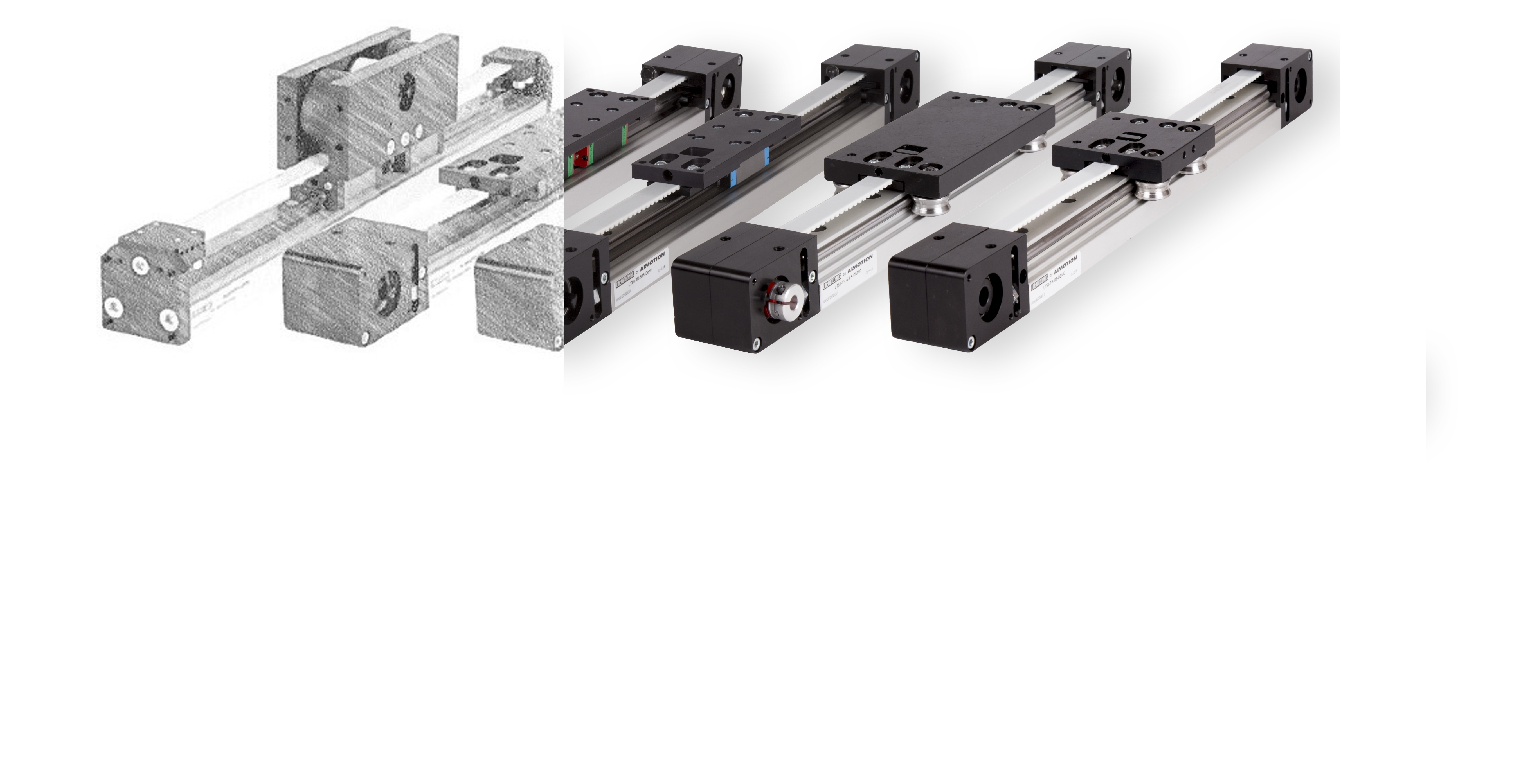

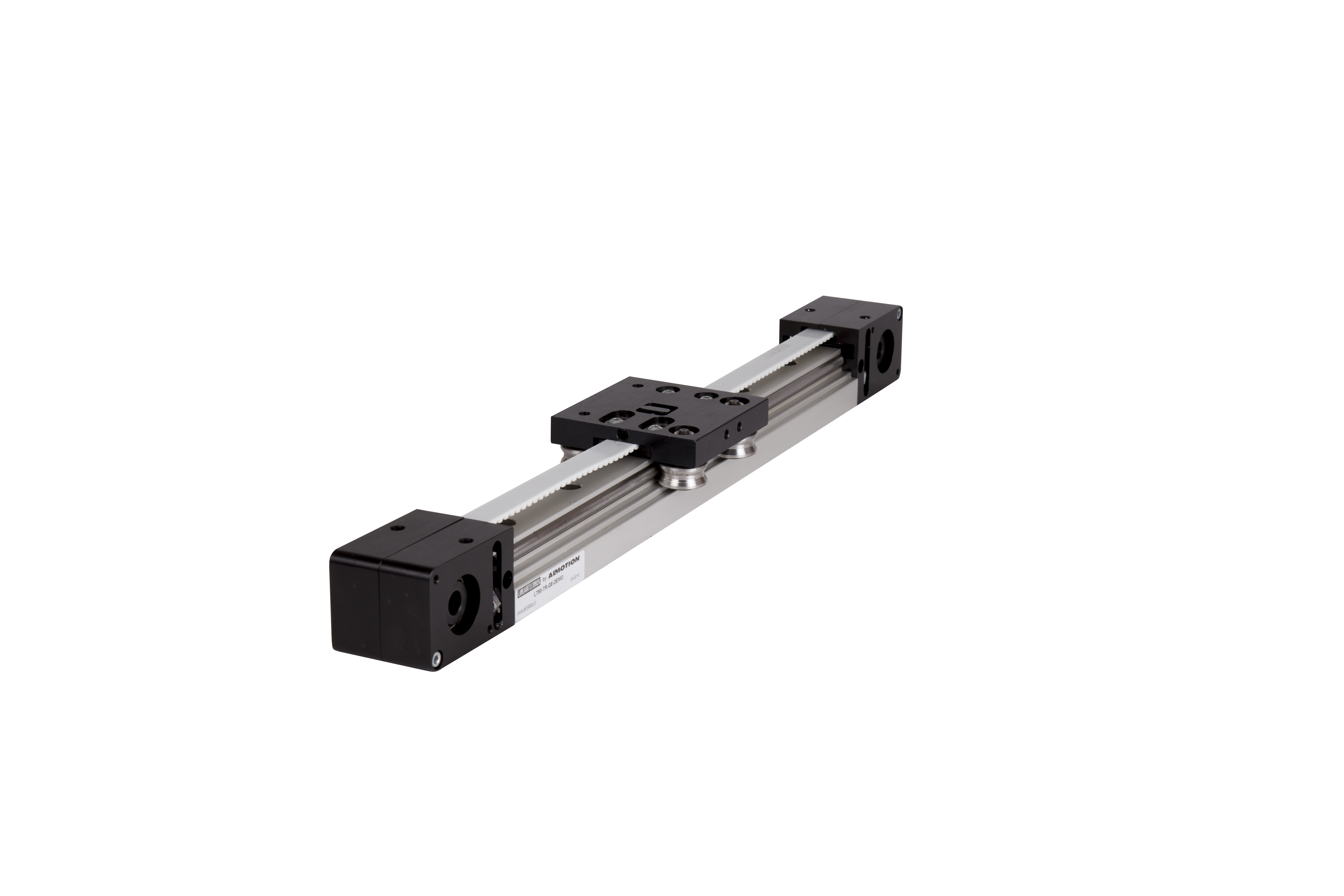

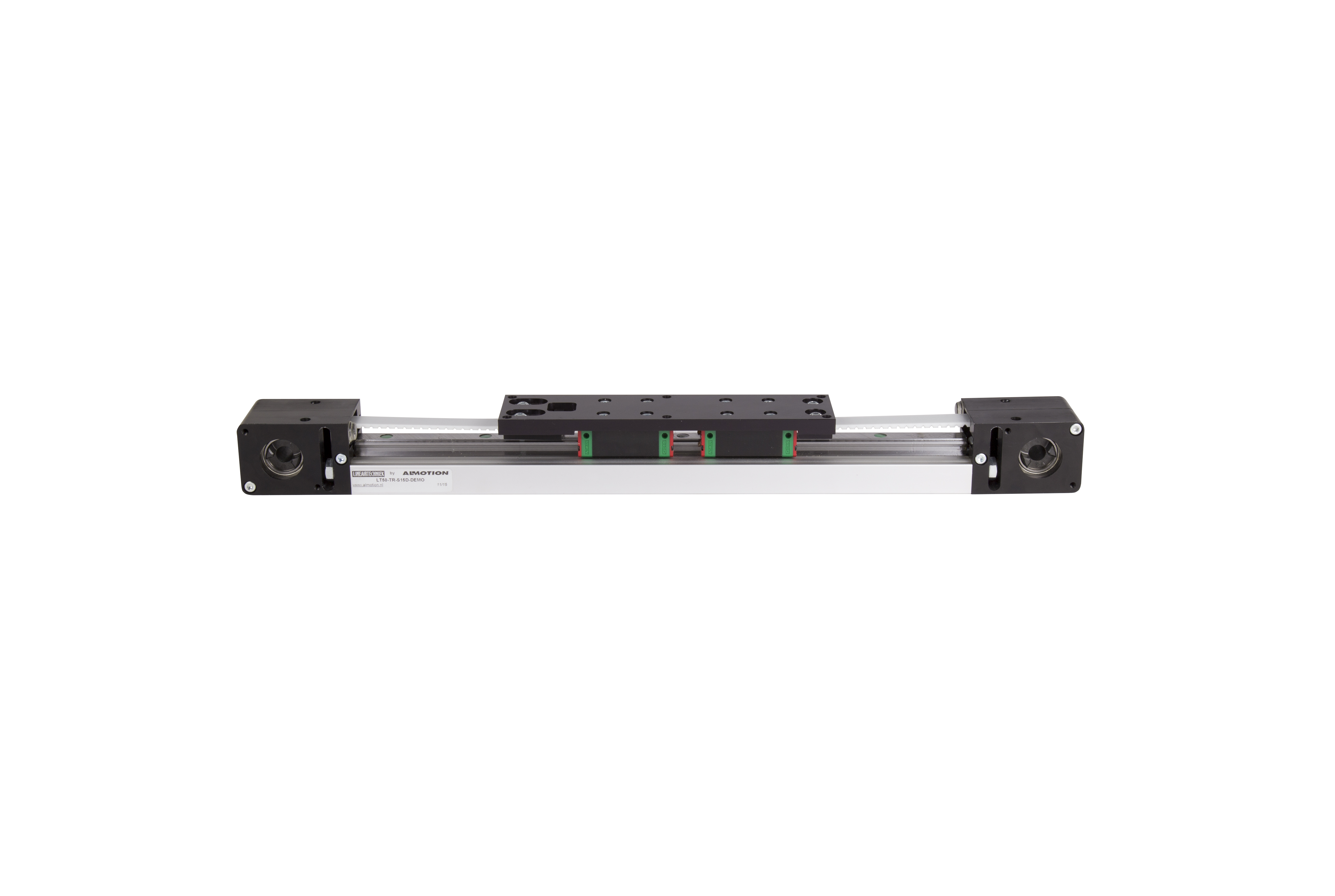

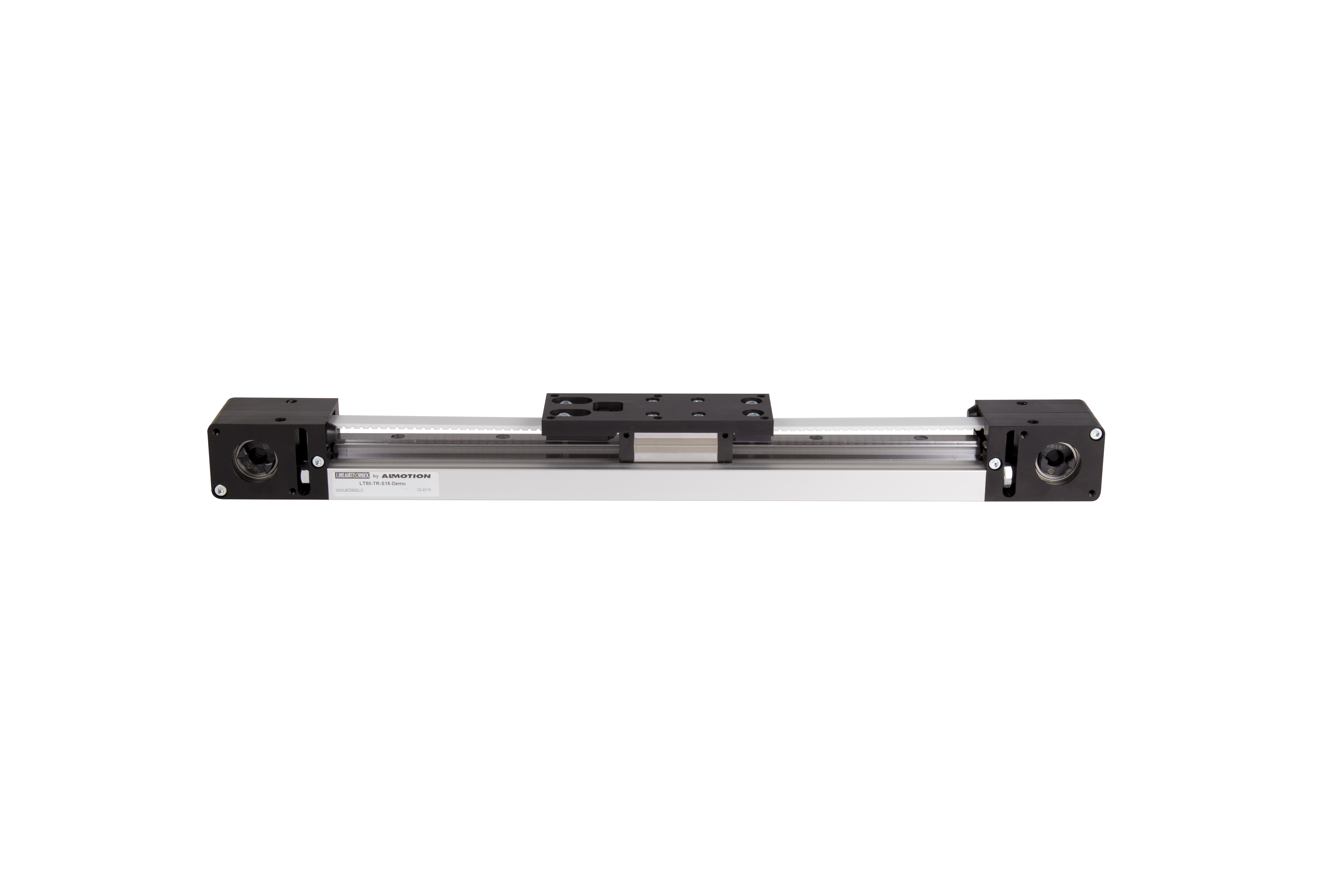

LT50-TR-G8 | LT50-TR-S15 | LT50-TR-S15D* | ||
Maximum stroke | mm | 5.900 | 5.800 | 5.730 |
Maximum speed | mm/s | 5.000 | 3.000 | 3.000 |
Maximum acceleration | m/s2 | 50 | 30 | 30 |
No load torck | Nm | 0,2 | 0,6 | 0,9 |
Repeatability | mm | ±0,1 | ±0,1 | ±0,1 |
Movement per revolution | mm | 100 | 100 | 100 |
Weight Linear Units | ||||
Unit weight 0 mm stroke | Kg | 2,43 | 2,32 | 2,53 |
Weight per 100 mm stroke | Kg | 0,28 | 0,28 | 0,28 |
Mass of carriage | Kg | 0,33 | 0,31 | 0,53 |
Load capacity | ||||
Mx | Nm | 11 | 14 | 106 |
My | Nm | 11 | 14 | 106 |
Mz | Nm | 8 | 20 | 40 |
Fx | N | 1.000 | 1.000 | 1.000 |
Fy | N | 980 | 1.700 | 3.400 |
Fz | N | 850 | 1.800 | 3.600 |
