LTC designed by Lineairtechniek©

This toothed belt system is unique because of its many applications.
This is also often possible in combination with other systems.

Almotion is specialized in modular linear units and has more than 25 years experience.

Characteristics linear modular LTC series:

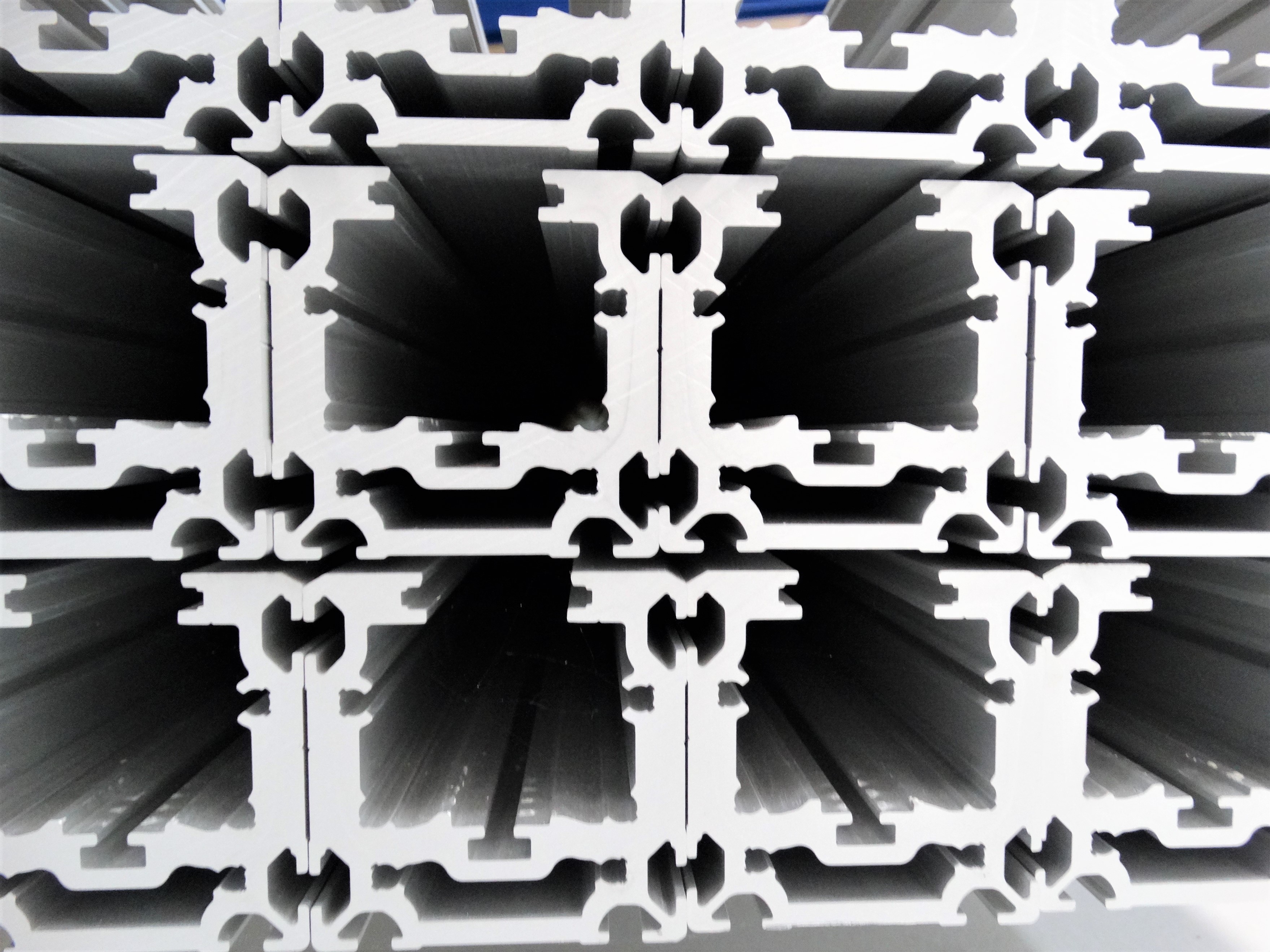

  • Basic extrusion profile 45x90 mm, 45x135 mm or 90x90 mm
  • Linear guide through hardened wheels on hardened shafts
  • Toothed belt type AT10 width 16,25 mm or 50 mm
  • Hardened and grinded V-shaped wheels
  • Very resistant to pollution

The D1 series are conventional linear units. The S1 and the S2 performances have carriages on the side. The S2 has smaller installation dimensions because of the positioning of the linear guides and carriages.


Lineairtechniek LTC-TR-D1


Go to

Lineairtechniek LTC-TR-S1
Go to

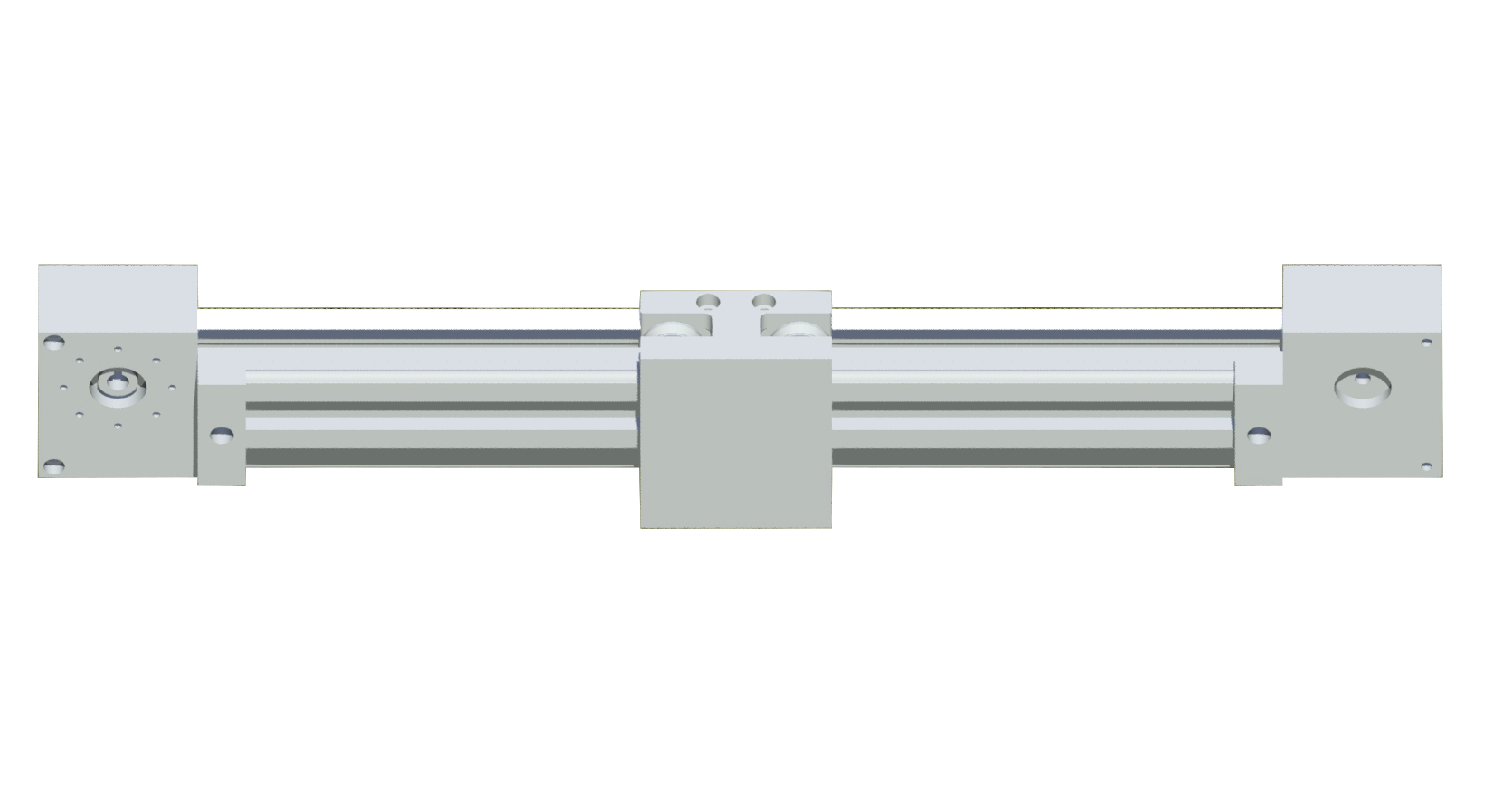

Lineairtechniek LTC-TR-S2
Go to
