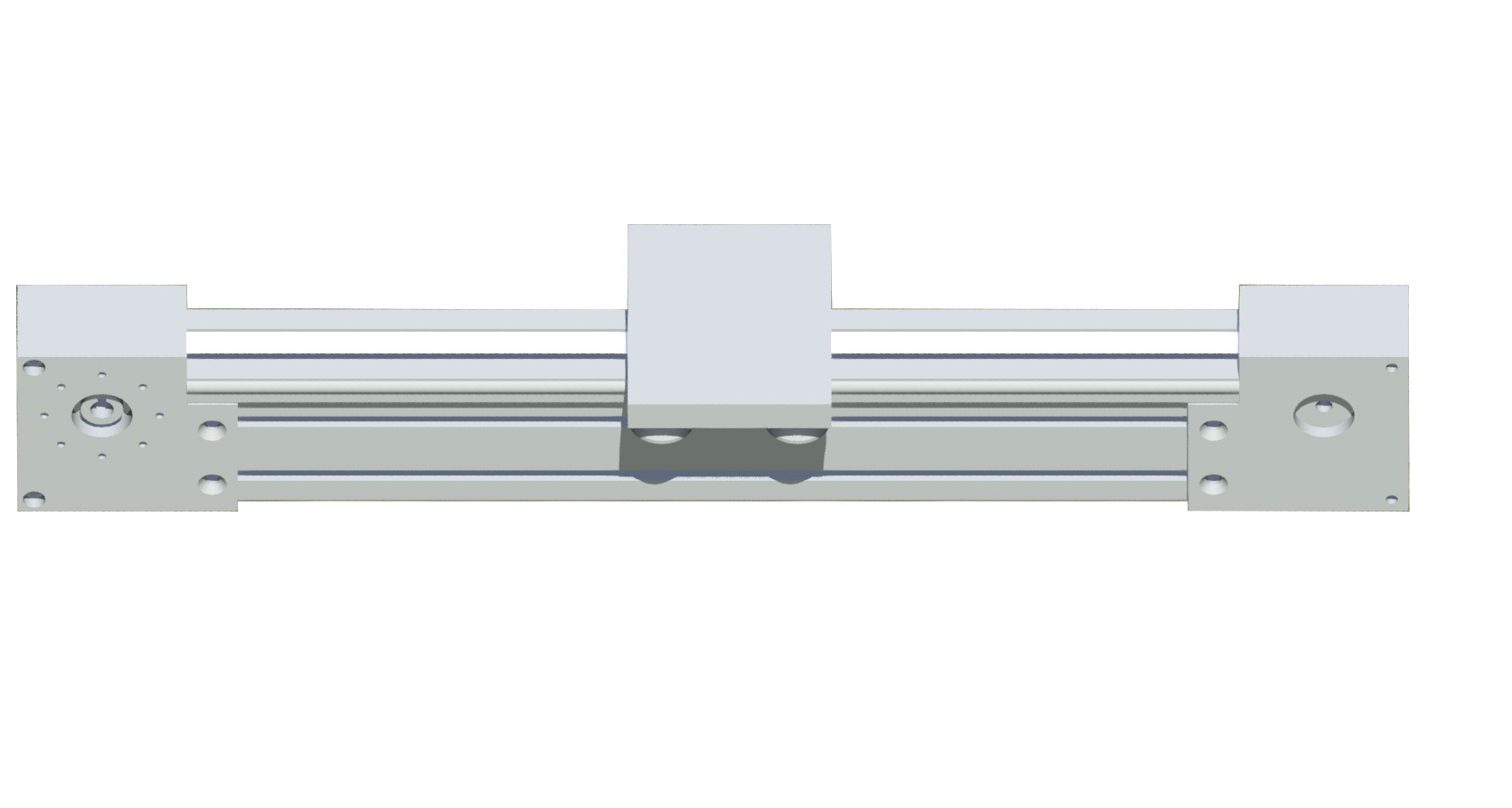

Technical data of modulair linear unit LTC from Lineairtechniek
| LTC-TR-C10 | LTC-TR-C12 | LT2-TR-C16 | LT2-TR-G20 | ||
| Maximum stroke length | mm | 12.000 | 12.000 | 12.000 | 12.000 |
| Maximum speed | mm/s | 5.000 | 5.000 | 5.000 | 5.000 |
| Maximum acceleration | m/s2 | 50 | 50 | 50 | 50 |
| Repeatability | mm | ±0,1 | ±0,1 | ±0,1 | ±0,1 |
| Movement per revolution | mm | 200 | 200 | 200 | 200 |
| Load capacity | |||||
| Mx | Nm | 84 | 144 | 320 | 608 |
| My | Nm | 127 | 200 | 490 | 650 |
| Mz | Nm | 42 | 72 | 160 | 410 |
| Fx | N | 2.100 | 2.100 | 2.100 | 6.500 |
| Fy | N | 2.400 | 3.200 | 6.400 | 6.400 |
| Fz | N | 2.600 | 3.200 | 7.000 | 7.000 |
*D Double carriage
