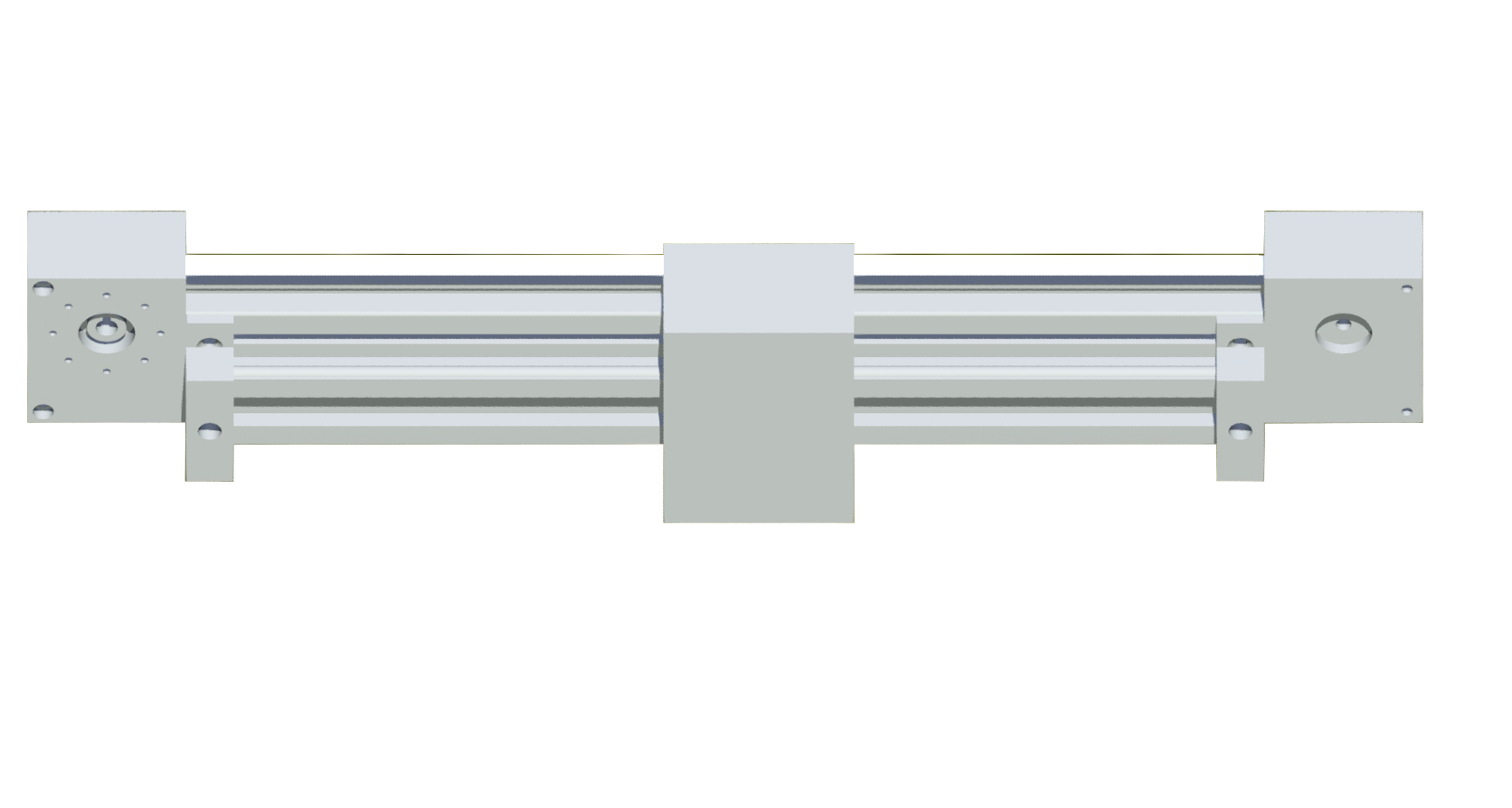

Technical data of modulair linear unit LTC-S1 from Lineairtechniek
| LTC-TR-C10 | LTC-TR-C12 | LT2-TR-C16 | |||
| Maximum stroke length | mm | 12.000 | 12.000 | 12.000 | |
| Maximum speeds | mm/s | 5.000 | 5.000 | 5.000 | |
| Maximum acceleration | m/s2 | 50 | 50 | 50 | |
| Repeatability | mm | ±0,1 | ±0,1 | ±0,1 | |
| Movement per revolution | mm | 200 | 200 | 200 | |
| Load capacity | |||||
| Mx | Nm | 84 | 144 | 320 | |
| My | Nm | 127 | 200 | 490 | |
| Mz | Nm | 42 | 72 | 160 | |
| Fx | N | 2.100 | 2.100 | 2.100 | |
| Fy | N | 2.400 | 3.200 | 6.400 | |
| Fz | N | 2.600 | 3.200 | 7.000 |
