The internal guide units or semi closed units:

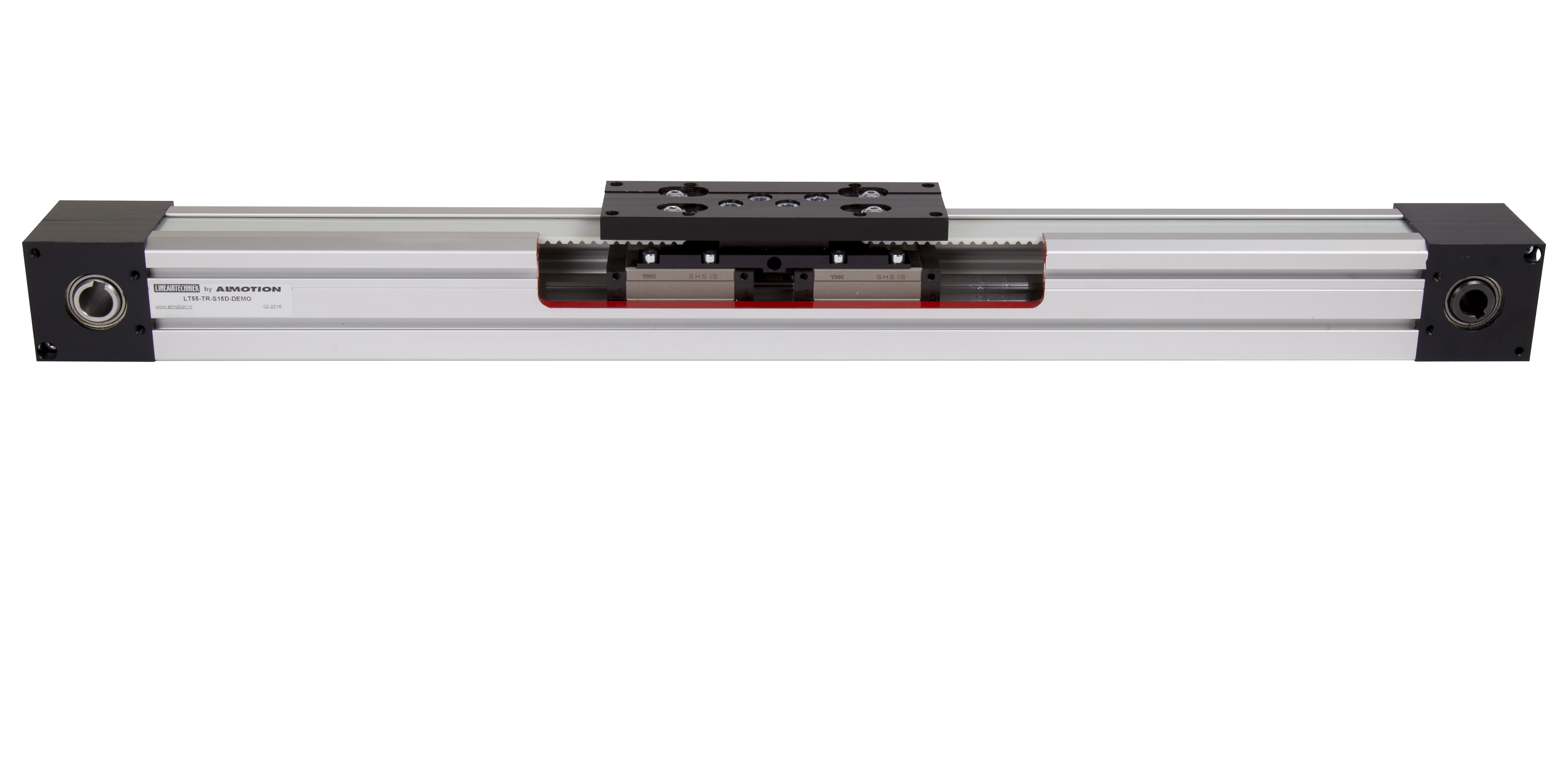

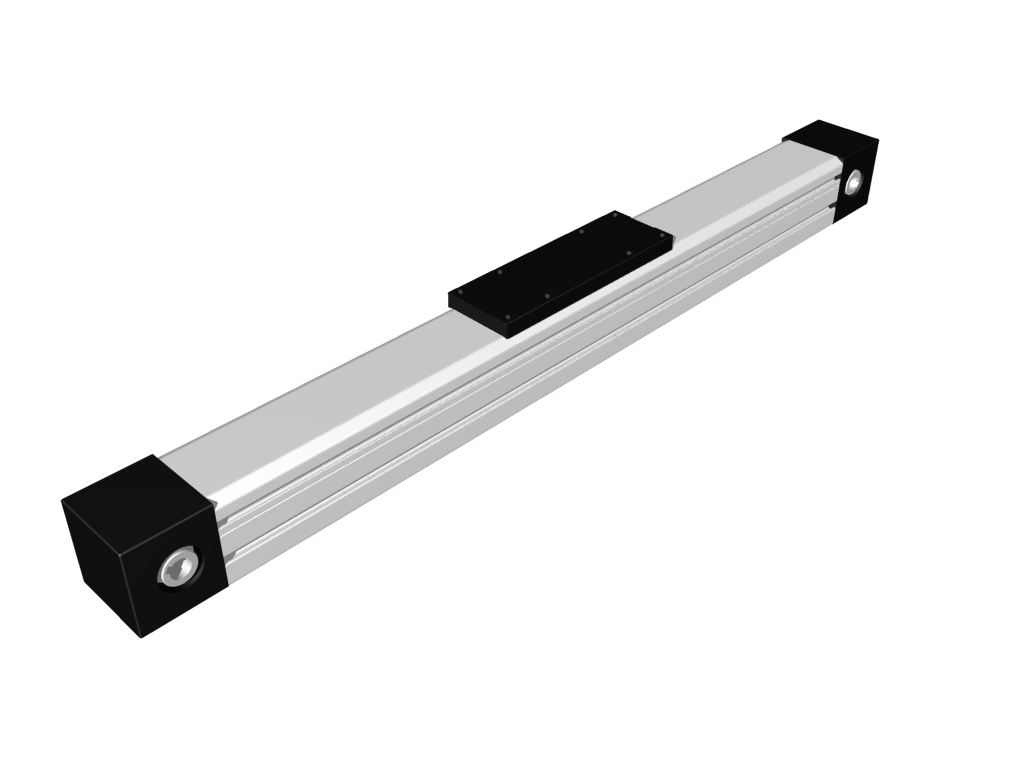

LT55 from Lineairtechniek:

  • The width of the profile is 55 mm
  • Internal recirculating ball raile guide size -15-
  • Double carriage design for heavier loads
    THL*: 20 kg
  • Magnetic switches in T-slot for position detection**
  • Tooth belt type 25 AT5
  • Customization possible

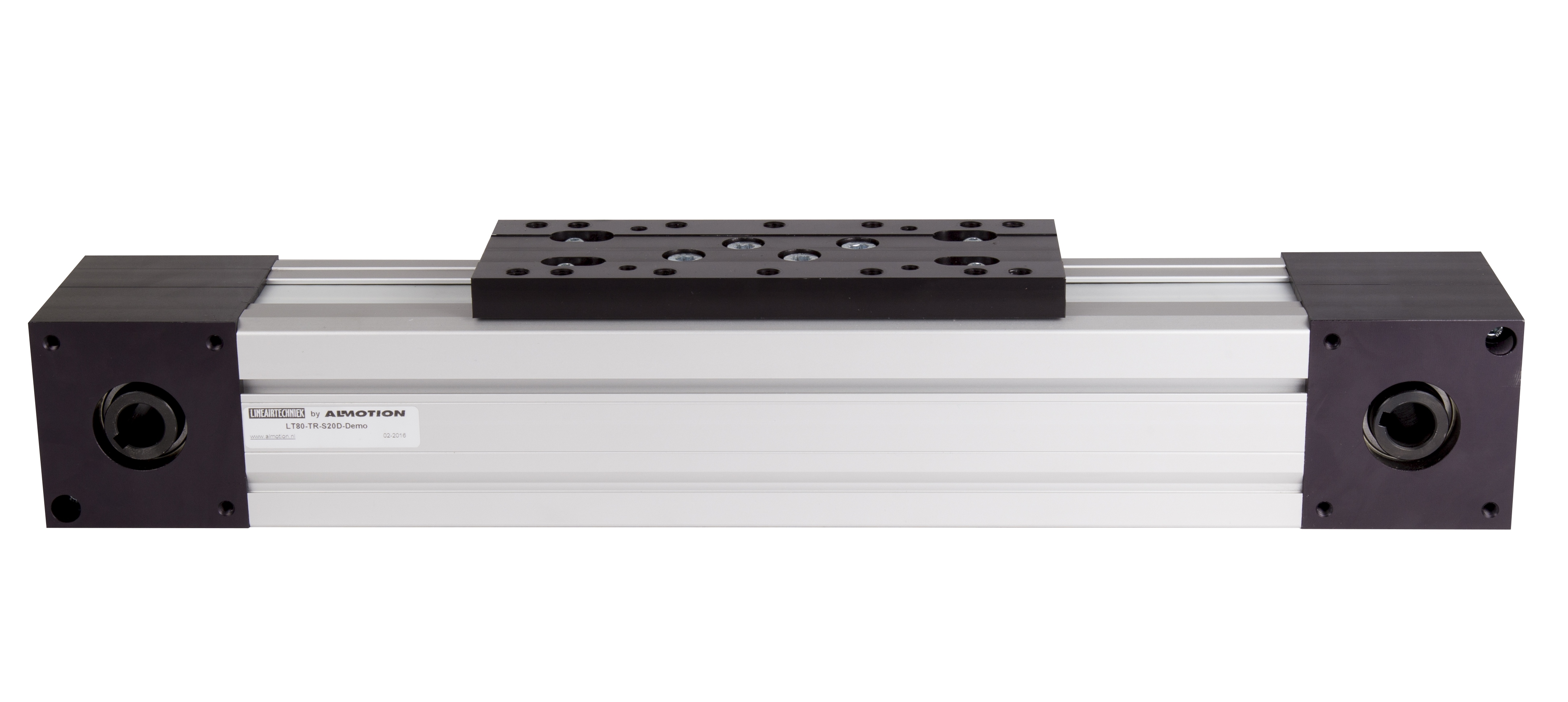

LT80 from Lineairtechniek:

  • The width of the profile is is 80 mm
  • Hardened guide wheels on hardened shafts -10-, highly resistant to pollution
    THL*: 10 kg
  •  Or an internal recirculating ball rail guide size -20- for heavy loads
    THL*: 42 kg
  • Magnetic switches in T-slot for position detection**
  • Tooth belt type 32 AT10
  • Customization possible

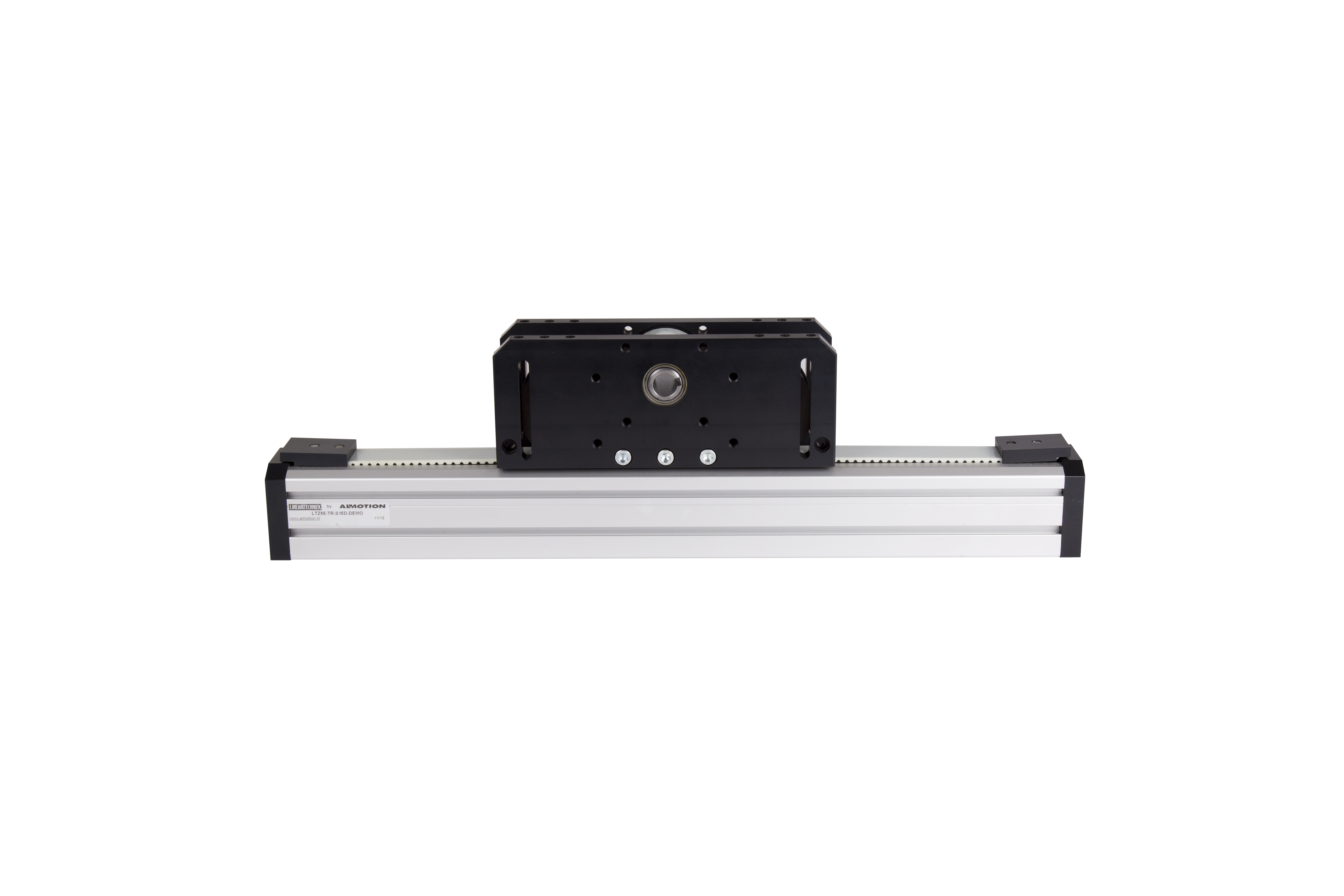

LTZ55 from Lineairtechniek:

  • Compacte omega lineaire unit, de breedte van het profiel is 55 mm
  • Internal recirculating ball rail guide size -15- for heavy loads
    THL*: 20 kg
  • Suitable as z-axis in a configuration
  • Tandriem 25 AT5
  • Customization possible

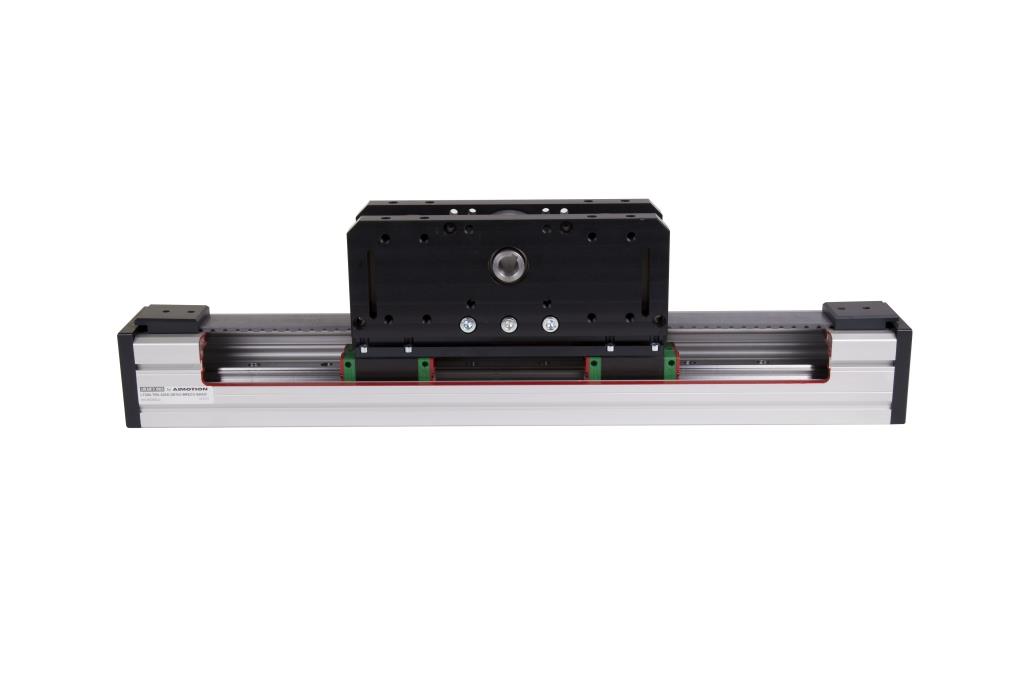

LTZ80 van Lineairtechniek:

  • Compact omega linear unit, the width of the profile is 80 mm
  • Internal recirculating ball rail guide size -15- for heavy loads
    THL*: 42 kg
  • Suitable as z-axis in a configuration
  • Tooth belt 32 AT10
  • Customization possible

* THL= Theoretical Handling Load. This weight depends on many factors (for example speed and acceleration).
   In case you wish to know the maximum weight for your application, please
contact us.

** Optional


LT55 serie from Lineairtechniek
Go to

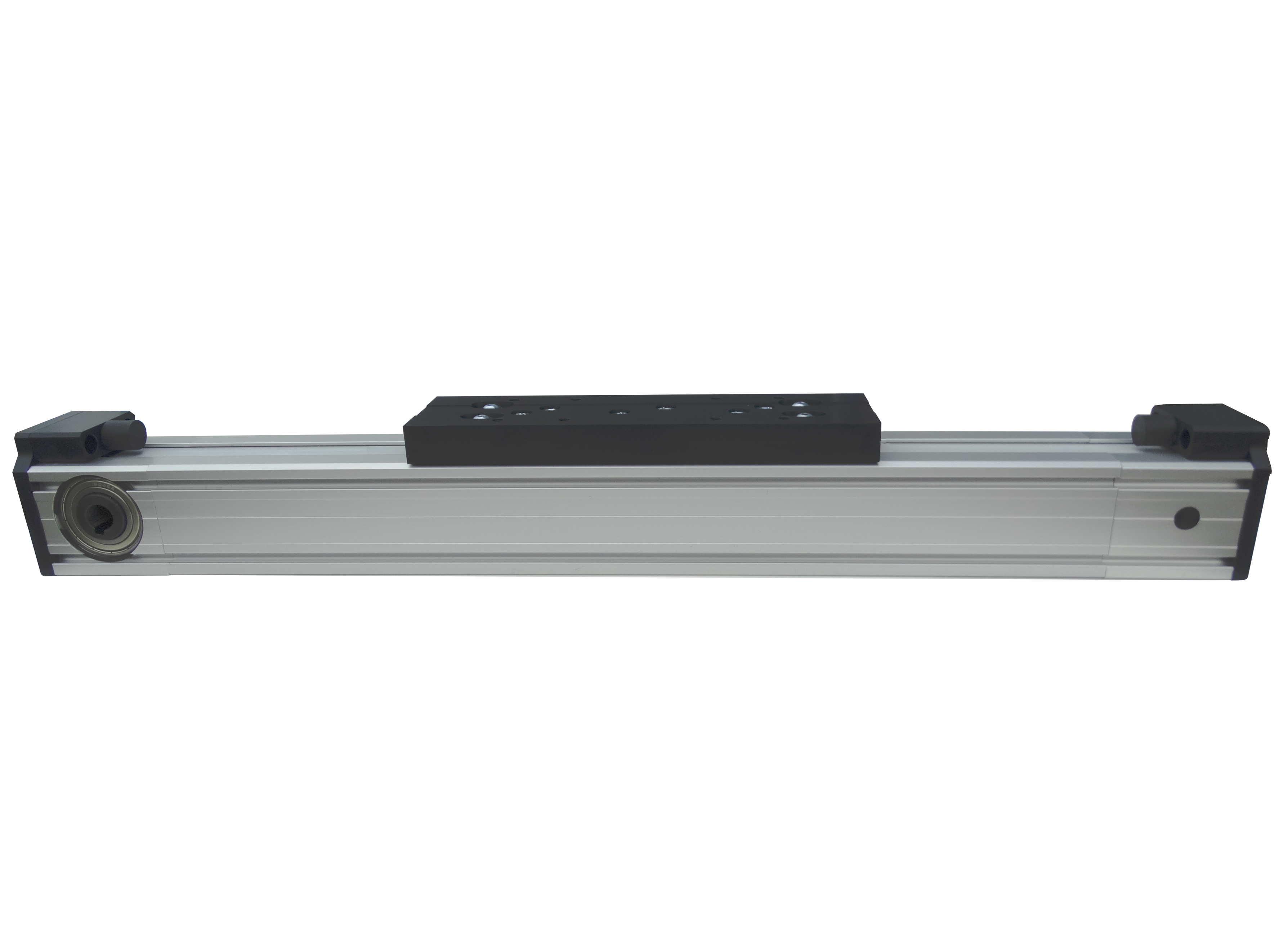

LT60S series from Lineairtechniek

LT60S serie

Go to

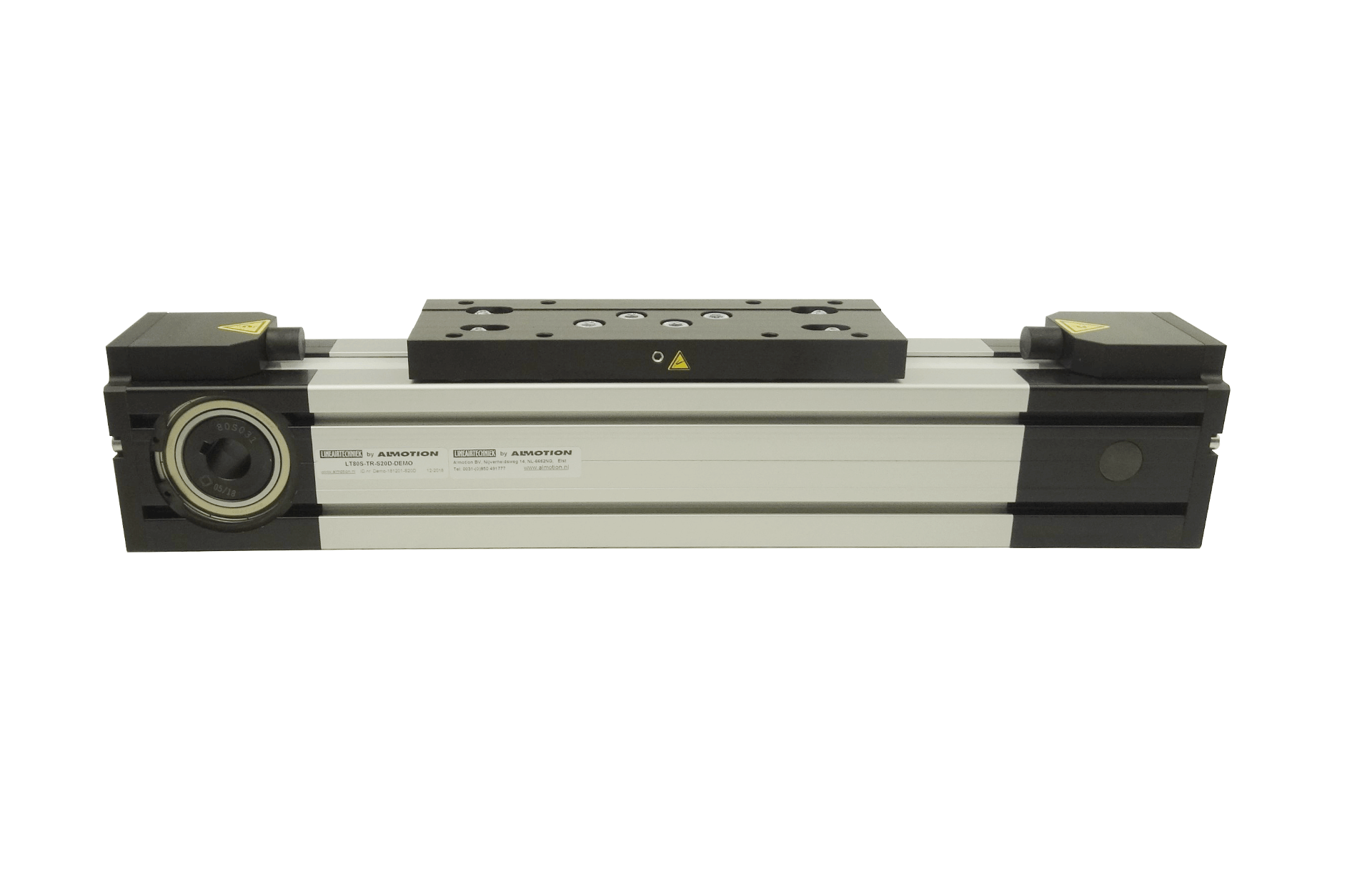

LT80S series from Lineairtechniek
