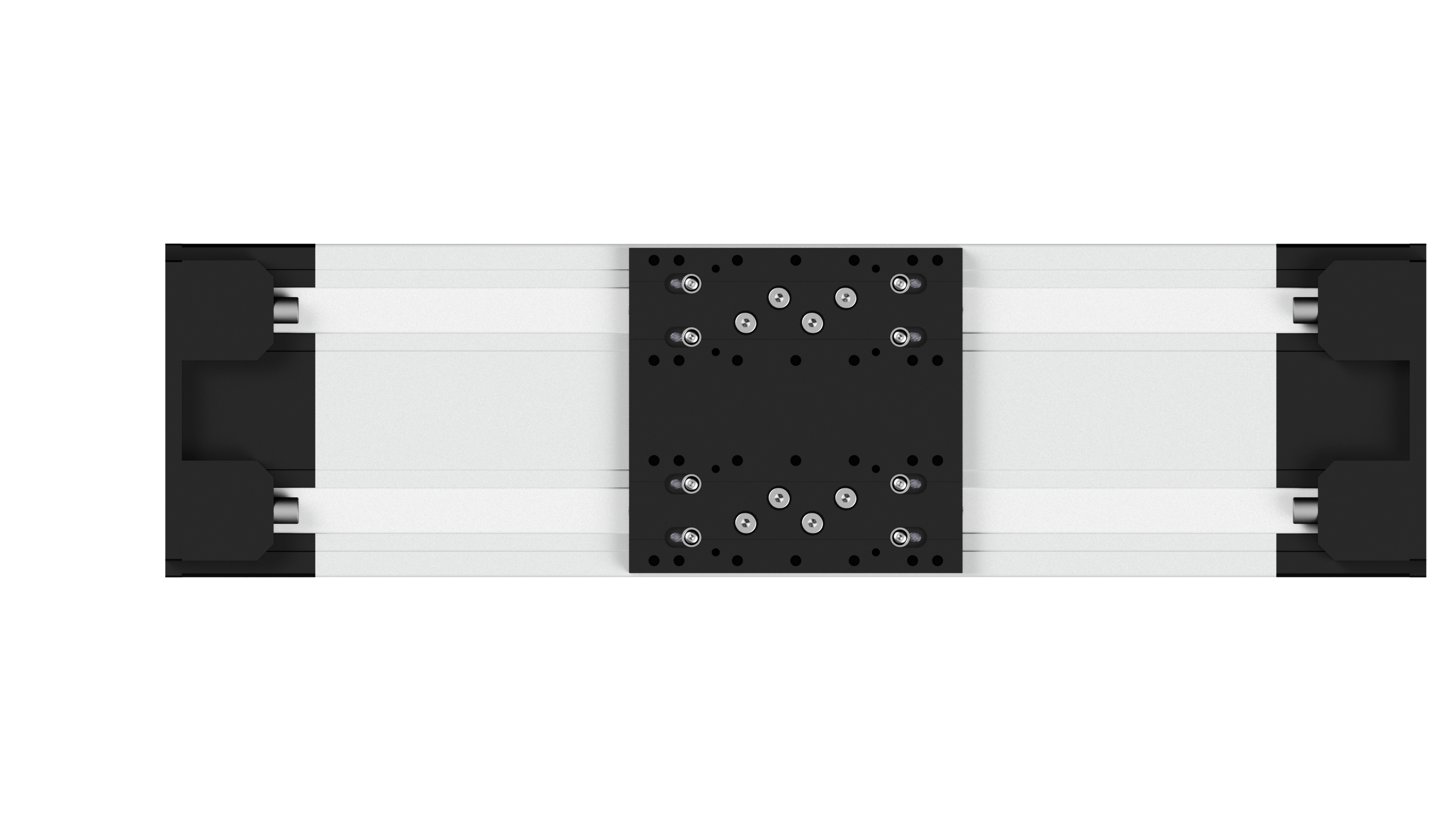

LTY200 from lineairtechniek

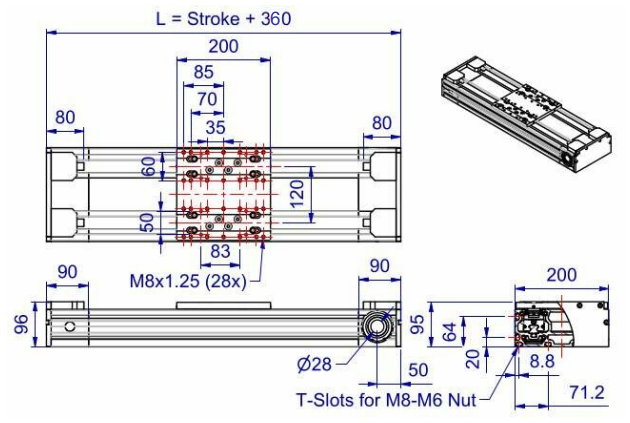

Linear unit "closed" from Lineairtechniek:
Width of the profile is 200 mm
Extrusion profile 80 x 200 mm
Internal recirculating ball rail guide size -20- with 4 LM blocks
Double rail guide system
Very heavy loads
FDA Approval Double Toothed belt type AT10, 32mm wide
Maximum stroke length 5.500 mm
Download
Learn more about the product
LTY200 Brochure (
